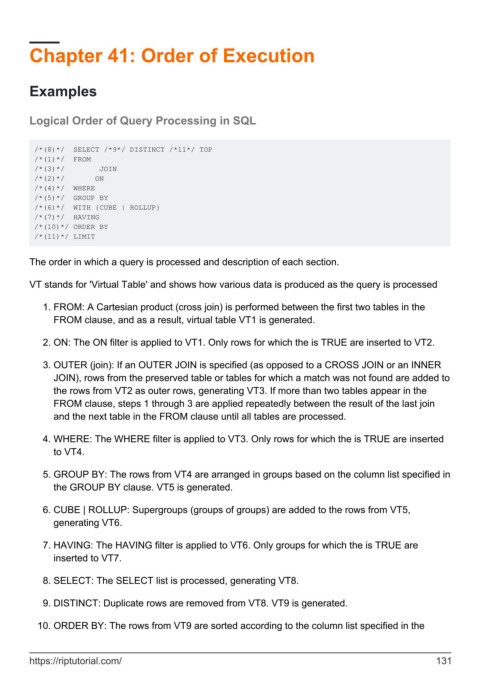

Chapter 41: Order of Execution

Examples

Logical Order of Query Processing in SQL

/*(8)*/ SELECT /*9*/ DISTINCT /*11*/ TOP
/*(1)*/ FROM
/*(3)*/ JOIN
/*(2)*/ ON
/*(4)*/ WHERE
/*(5)*/ GROUP BY
/*(6)*/ WITH {CUBE | ROLLUP}
/*(7)*/ HAVING
/*(10)*/ ORDER BY
/*(11)*/ LIMIT

The order in which a query is processed and description of each section.

VT stands for 'Virtual Table' and shows how various data is produced as the query is processed

1. FROM: A Cartesian product (cross join) is performed between the first two tables in the
FROM clause, and as a result, virtual table VT1 is generated.

2. ON: The ON filter is applied to VT1. Only rows for which the is TRUE are inserted to VT2.

3. OUTER (join): If an OUTER JOIN is specified (as opposed to a CROSS JOIN or an INNER
JOIN), rows from the preserved table or tables for which a match was not found are added to
the rows from VT2 as outer rows, generating VT3. If more than two tables appear in the
FROM clause, steps 1 through 3 are applied repeatedly between the result of the last join
and the next table in the FROM clause until all tables are processed.

4. WHERE: The WHERE filter is applied to VT3. Only rows for which the is TRUE are inserted
to VT4.

5. GROUP BY: The rows from VT4 are arranged in groups based on the column list specified in
the GROUP BY clause. VT5 is generated.

6. CUBE | ROLLUP: Supergroups (groups of groups) are added to the rows from VT5,
generating VT6.

7. HAVING: The HAVING filter is applied to VT6. Only groups for which the is TRUE are
inserted to VT7.

8. SELECT: The SELECT list is processed, generating VT8.

9. DISTINCT: Duplicate rows are removed from VT8. VT9 is generated.

10. ORDER BY: The rows from VT9 are sorted according to the column list specified in the
